Sant Check & Non-Return Valves
54 families of Sant Check & Non-Return Valves, 10–400 mm, with 399 sizes listed and priced.
What this range covers
| Sizes | 10–400 mm |
|---|---|
| Body materials | Gunmetal (LTB-2, IS 318), Bronze, Cast iron (FG 200, IS 210), Carbon steel (WCB, ASTM A216), Stainless steel CF8 (SS 304), Forged brass (IS 319), Ductile iron / SG iron (IS 1865) |
| End connections | Flanged, Screwed BSP (parallel), Socket weld, Screwed NPT, Wafer |
| Pressure ratings | PN 16, PN 20, PN 25, PN 40 |
| List price range | ₹753.00 – ₹396,955.00 ex-GST |
About the Sant check valves range
Concept Engineers is an authorised Sant distributor. This page lists every Sant check valve we carry — 54 families covering 10 mm to 400 mm, in 7 body materials.
Installation orientation decides more than it should. A valve built for a horizontal line will not necessarily seat correctly stood on end, and a vertical-only design fitted horizontally can hang open under its own disc weight — worth checking against the line's actual run before ordering on bore alone.
The Sant range here is supplied in gunmetal to IS 318 LTB-2 for potable and general water service, cast iron to IS 210 for larger bores on water duty, bronze for water and low-pressure steam and carbon steel WCB for steam and higher pressures, and 3 more. What the line carries, and how hot it runs, decide the body. Those two facts narrow the choice before bore, class or budget are considered at all.
Bores available are 10–25 mm, 32–50 mm, 65–100 mm, 125–200 mm and 250–400 mm. Above roughly 50 mm the pattern shifts to flanged cast bodies, and flange drilling, weight and lifting become part of the order rather than an afterthought.
The range is supplied with Flanged, Screwed BSP (parallel) and Socket weld ends. Which one is right is a question about the line, not about the valve, and it is the detail most often left off an enquiry.
Pressure classes cover PN 16, PN 25, PN 40 and PN 20. The class is a rating on the body, not a statement about the line: a valve is selected on the pressure and temperature it will actually see in service.
Where an inspection certificate or an IBR form is required, say so with the enquiry — it is arranged with the manufacturer at order stage and cannot be added to a valve already despatched.
An enquiry for check valves is quickest to price when it states the line's orientation and whether the pump can reverse against a static head as well as the sizes and quantities. Without it we have to come back and ask, which adds a day to the quotation for no reason.
Every price here is the current list price before GST. Send a schedule and we will price it against your quantities.
All 54 Sant families
-
15–25 mmForged brassSant Brass Swing Check Valve
Price range: ₹787.00 through ₹1,595.00 -
15–50 mmForged brassSant Brass Universal Check Valve
Price range: ₹857.00 through ₹5,137.00 -
20–50 mmBronzeFlangedSant Bronze Accessible Feed Check Valve
Price range: ₹25,283.00 through ₹128,995.00 -
15–50 mmBronzeFlangedSant Bronze Combined Feed Check Valve
Price range: ₹18,901.00 through ₹107,234.00 -
15–50 mmBronzeFlangedSant Bronze Controllable feed check valve — Flanged
Price range: ₹21,548.00 through ₹97,174.00 -
10–50 mmBronzeScrewed BSPSant Bronze Controllable feed check valve — Screwed BSP
Price range: ₹6,970.00 through ₹66,186.00 -
15–50 mmBronzeScrewed BSPSant Bronze Horizontal Lift Check Valve — IBR 3A
Price range: ₹5,534.00 through ₹30,343.00 -
40–80 mmBronzeScrewed BSPSant Bronze Horizontal Lift Check Valve — IBR 3B
Price range: ₹43,798.00 through ₹122,476.00 -
15–50 mmBronzeFlangedSant Bronze Horizontal Lift Check Valve — IBR 3C
Price range: ₹12,418.00 through ₹50,651.00 -
65–100 mmBronzeFlangedSant Bronze Horizontal Lift Check Valve — IBR 3D
Price range: ₹118,306.00 through ₹190,231.00 -
65–100 mmBronzeFlangedSant Bronze Horizontal Lift Check Valve — IBR 3E
Price range: ₹112,054.00 through ₹179,819.00 -
15–50 mmBronzeFlangedSant Bronze Horizontal Lift Check Valve — IBR 3F
Price range: ₹10,423.00 through ₹47,616.00 -
15–100 mmGunmetalSant Bronze Horizontal Lift Check Valve — IS 14
Price range: ₹1,454.00 through ₹54,222.00 -
15–100 mmGunmetalSant Bronze Horizontal Lift Check Valve — IS 14A
Price range: ₹1,570.00 through ₹57,790.00 -
15–100 mmGunmetalFlangedSant Bronze Horizontal Lift Check Valve — IS 15
Price range: ₹6,113.00 through ₹90,370.00 -
15–100 mmGunmetalFlangedSant Bronze Horizontal Lift Check Valve — IS 15A
Price range: ₹6,499.00 through ₹98,626.00 -
15–100 mmGunmetalPN 16Sant Bronze Right Angle Lift Check Valve
Price range: ₹1,189.00 through ₹59,454.00 -
15–50 mmGunmetalSant Bronze Swing Check Valve — IS 16
Price range: ₹1,666.00 through ₹12,366.00 -
15–50 mmGunmetalSant Bronze Swing Check Valve — IS 35A
Price range: ₹1,902.00 through ₹15,028.00 -
15–100 mmGunmetalSant Bronze Vertical Lift Check Valve
Price range: ₹1,319.00 through ₹40,429.00 -
15–50 mmBronzeScrewed BSPSant Bronze Vertical Non Return Valve — IBR 4A
Price range: ₹6,970.00 through ₹23,962.00 -
15–50 mmBronzeFlangedSant Bronze Vertical Non Return Valve — IBR 4B
Price range: ₹15,240.00 through ₹50,957.00 -
25–65 mmCast ironFlangedSant C.I. Accessible Feed Check Valve
Price range: ₹17,439.00 through ₹48,143.00 -
25–65 mmCast ironFlangedSant C.I. Accessible Feed Check Valve
Price range: ₹17,439.00 through ₹48,143.00 -
32–65 mmCast ironFlangedSant C.I. Accessible Feed Check Valve
Price range: ₹21,820.00 through ₹49,455.00 -
32–65 mmCast ironSant C.I. Accessible Feed Check Valve
Price range: ₹21,820.00 through ₹49,455.00 -
15–200 mmCast ironFlangedPN 16Sant C.I. Lift Check Valve
Price range: ₹2,874.00 through ₹67,791.00 -
40–200 mmCast ironFlangedPN 16Sant C.I. Stop Cum Non Return Valve
Price range: ₹9,591.00 through ₹91,358.00 -
40–200 mmCast ironFlangedSant C.I. Swing Check Valve
Price range: ₹6,672.00 through ₹64,456.00 -
25–80 mmCarbon steelFlangedSant Cast Steel Accessible Feed Check Valve
Price range: ₹19,059.00 through ₹100,230.00 -
15–300 mmCarbon steelFlangedPN 40Sant Cast Steel Horizontal Check Valve — CS 2
Price range: ₹5,738.00 through ₹396,955.00 -

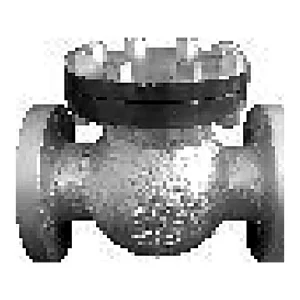

25–300 mmCarbon steelFlangedSant Cast Steel Horizontal Check Valve — CS 8A
Price range: ₹7,682.00 through ₹335,348.00 -
25–300 mmCarbon steelFlangedSant Cast Steel Horizontal Check Valve — CS 8B
Price range: ₹5,275.00 through ₹294,076.00 -
40–200 mmCarbon steelFlangedSant Cast Steel Swing Check Valve
Price range: ₹12,812.00 through ₹104,536.00 -
50–300 mmStainless steel CF8FlangedPN 16Sant Dual Plate Check Valve
Price range: ₹4,450.00 through ₹61,626.00 -
50–400 mmCast ironFlangedPN 16Sant Dual Plate Wafer Check Valve — PN 16
Price range: ₹4,270.00 through ₹80,908.00 -
50–300 mmDuctile iron / SG ironFlangedPN 25Sant Dual Plate Wafer Check Valve — PN 25
Price range: ₹5,218.00 through ₹80,961.00 -
15–40 mmSocket weldSant Forged Steel Horizontal Check Valve
Price range: ₹3,724.00 through ₹18,534.00 -
15–40 mmStainless steel CF8Screwed NPTSant Forged Steel Horizontal Lift Check Valve — Screwed NPT
Price range: ₹2,375.00 through ₹11,900.00 -
10–50 mmStainless steel CF8Screwed NPTSant Forged Steel Horizontal Lift Check Valve — Screwed NPT
Price range: ₹2,102.00 through ₹11,900.00 -
15–40 mmStainless steel CF8Socket weldSant Forged Steel Horizontal Lift Check Valve — Socket weld
Price range: ₹2,375.00 through ₹11,900.00 -
10–50 mmStainless steel CF8Socket weldSant Forged Steel Horizontal Lift Check Valve — Socket weld
Price range: ₹2,102.00 through ₹11,900.00 -
15–200 mmCast ironFlangedPN 16Sant Horizontal Check Valve
Price range: ₹2,767.00 through ₹67,791.00 -
50–300 mmCast ironFlangedSant Reflux Valve (Non-Return Valve) — CR 31
Price range: ₹5,600.00 through ₹92,698.00 -
50–300 mmCast ironFlangedPN 16Sant Reflux Valve (Non-Return Valve) — CR 31A
Price range: ₹5,996.00 through ₹99,186.00 -
15–50 mmFlangedPN 40Sant S.S. Wafer Disc Check Valve
Price range: ₹753.00 through ₹3,662.00 -
50–400 mmCarbon steelWaferPN 16Sant Single Plate Wafer Check Valve
Price range: ₹2,104.00 through ₹48,039.00 -
10–100 mmGunmetalScrewed BSPPN 16SBM Bronze Horizontal Lift Check Valve No. 4
Price range: ₹785.00 through ₹45,661.00 -
15–100 mmGunmetalScrewed BSPPN 20SBM Bronze Horizontal Lift Check Valve No. 5
Price range: ₹1,333.00 through ₹63,906.00 -
15–125 mmGunmetalFlangedPN 16SBM Bronze Horizontal Lift Check Valve No. 8
Price range: ₹4,994.00 through ₹142,690.00 -
15–100 mmGunmetalFlangedPN 20SBM Bronze Horizontal Lift Check Valve No. 9
Price range: ₹5,471.00 through ₹82,760.00 -
15–100 mmGunmetalPN 25SBM Bronze Union Bonnet Horizontal Lift Check Valve — SBM 16
Price range: ₹2,540.00 through ₹97,600.00 -
15–100 mmGunmetalFlangedPN 25SBM Bronze Union Bonnet Horizontal Lift Check Valve — SBM 17
Price range: ₹7,610.00 through ₹134,903.00 -
15–100 mmGunmetalScrewed BSPSBM Bronze Vertical Lift Check Valve
Price range: ₹862.00 through ₹35,672.00
Other Sant ranges we carry
Common questions
What sizes does Sant Check & Non-Return Valves come in?
10 mm to 400 mm, across 54 families with sizes and list prices given on this page.
What body materials are available in Sant Check & Non-Return Valves?
Gunmetal (LTB-2, IS 318), Bronze, Cast iron (FG 200, IS 210), Carbon steel (WCB, ASTM A216), Stainless steel CF8 (SS 304), Forged brass (IS 319) and 1 more, matched to the medium and pressure the size table specifies.
What pressure ratings does Sant Check & Non-Return Valves cover?
PN 16, PN 25, PN 40, PN 20 — check the individual family page for the rating that applies at the size you need.
What end connections does Sant Check & Non-Return Valves use?
Flanged, Screwed BSP (parallel), Socket weld, Screwed NPT, Wafer, depending on the family and size — see the size table for the exact connection at the size you need.
Need a price on Sant Check & Non-Return Valves?
Send the sizes, quantities and the duty. We will come back with a priced offer, alternatives where a substitution makes sense, and realistic lead times.
